GAGG(Ce) Scintillation Crystal
ATR Crystal supplies GAGG(Ce) scintillation crystals, screens and pixelated arrays for gamma-ray and X-ray detection. GAGG crystal price depends on the material grade, dimensions, surface finish, reflector and quantity. Send your drawing and PMT, SiPM or camera readout requirements for a quotation. Final specifications are confirmed for the quoted configuration.
Built around your specification
- Product type
- Monolithic crystal, scintillation screen, substrate-coupled screen, framed screen, or pixelated array.
- Crystal dimensions
- Length, width, thickness, diameter, pixel size, pitch, tolerance, and drawing if available.
- GAGG(Ce) grade
- High light output, low afterglow, fast decay time, balanced type, or application-based recommendation.
- Surface and coating
- Polishing, roughening, reflection coating, AR coating, diffusion painting, conductive coating, or markings.
Final specifications and acceptance criteria are confirmed for the quoted configuration.
Request a quotationOverview
GAGG(Ce) Scintillation Crystal for Gamma and X-Ray Detection
GAGG(Ce) scintillation crystal, also written as GAGG:Ce or Ce-doped gadolinium aluminum gallium garnet, is a dense, non-hygroscopic oxide scintillator used for gamma-ray detection, X-ray imaging, PET/SPECT research, security inspection, high-energy physics instrumentation, and compact detector modules.
The material is often selected when a project needs high light output, practical handling, green emission around 520 nm, and compatibility with modern photosensors such as SiPMs and photodiodes. Compared with LYSO(Ce), GAGG(Ce) does not contain Lu-176 intrinsic background, which can be useful for low-background detector designs.
ATR Crystal supplies GAGG(Ce) crystals, ultra-thin scintillation screens, monolithic components, and pixelated arrays according to drawings or application requirements. Size, polishing, coating, reflector, substrate coupling, frame design, and readout matching can be reviewed before quotation.
Advantages of GAGG(Ce) Scintillation Crystal
- High light outputDifferent GAGG(Ce) grades can provide strong signal output for gamma and X-ray detector designs.
- Non-hygroscopic handlingGAGG(Ce) is easier to handle than hygroscopic materials such as NaI(Tl), LaBr3(Ce), and CeBr3.
- 520 nm green emissionThe emission peak is suitable for many SiPM, photodiode, and modern optical readout systems.
- No Lu-176 intrinsic backgroundUnlike LYSO(Ce), GAGG(Ce) does not contain lutetium-based intrinsic radioactivity.
- Grade selectionHigh light output, low afterglow, fast decay, and balanced types can be reviewed according to the detector priority.
- Custom formatsMonolithic crystals, scintillation screens, substrate-coupled screens, frames, coatings, and pixelated arrays can be discussed.
Related GAGG(Ce) Products and Material Options
For pixel-level detector design, review the GAGG(Ce) array. For high-density PET detector materials, compare LYSO(Ce) and BGO. For conventional gamma spectroscopy, review NaI(Tl). For broader material selection, visit the scintillation crystal category.
For grade selection, readout considerations and the information needed to compare quotations, see our GAGG(Ce) crystal selection and pricing guide.
Download the GAGG(Ce) Crystal Selection Reference (PDF)
This selection reference includes published grade comparisons and a drawing checklist. Final specifications and test methods are confirmed for the quoted configuration.
Comparing these materials? Read our GAGG vs BGO scintillator comparison for practical notes on light yield, stopping power and detector readout.
Specifications
Available GAGG(Ce) Product Formats
GAGG(Ce) can be supplied in several formats depending on detector geometry and readout method.
| Format | Typical Use | Design Notes |
|---|---|---|
| Monolithic crystal | Gamma detection, spectroscopy, compact modules | Dimension, thickness, surface finish, and readout surface should be defined. |
| Ultra-thin scintillation screen | X-ray imaging, beam visualization, microscope-coupled detection | Freestanding or substrate-coupled designs can be reviewed. |
| Framed screen | Handling-sensitive thin screens | Aluminum or stainless-steel frames can improve manipulation and assembly. |
| Pixelated GAGG(Ce) array | PET/SPECT research, SiPM modules, imaging detectors | Pixel size, pitch, reflector, crosstalk, and bonding method should be specified. |
| Coated or marked screen | Optical readout or beam alignment | Reflection coating, AR coating, diffusion painting, conductive coating, grid, cross, or scale can be discussed. |
Different Types of GAGG(Ce) Scintillators
Compare the reference light yield, decay time and afterglow of each GAGG(Ce) grade. The light yield and decay values should be reviewed for the same quoted grade.
| Type | Light Yield | Decay Time | Afterglow |
|---|---|---|---|
| High light output type | Approx. 54,000 photons/MeV | <150 ns | ≤0.10% @ 20 ms |
| Low afterglow type | Approx. 45,000 photons/MeV | <70 ns | ≤0.02% @ 20 ms |
| Fast decay time type | Approx. 30,000 photons/MeV | <50 ns | ≤0.10% @ 20 ms |
| Balanced type | Approx. 42,000 photons/MeV | <90 ns | ≤0.10% @ 20 ms |
Properties of GAGG(Ce) Scintillators
Typical values for engineering comparison. Final values depend on grade, size, test method, photosensor, and detector assembly.
| Parameter | High Light Output Type | Low Afterglow Type | Fast Decay Time Type | Balanced Type |
|---|---|---|---|---|
| Scintillation decay time | <150 ns | <70 ns | <50 ns | <90 ns |
| Emission peak wavelength | 520 nm | 520 nm | 520 nm | 520 nm |
| Refractive index at peak wavelength | 1.9 | 1.9 | 1.9 | 1.9 |
| Density | 6.6 g/cm3 | 6.6 g/cm3 | 6.6 g/cm3 | 6.6 g/cm3 |
| Light yield | Approx. 54,000 photons/MeV | Approx. 45,000 photons/MeV | Approx. 30,000 photons/MeV | Approx. 42,000 photons/MeV |
| Energy resolution at 137Cs, 5 x 5 x 5 mm | Approx. 6% | Approx. 6% | Approx. 7% | Approx. 6% |
| Radiation hardness | 10^5 rad | 10^5 rad | 10^5 rad | 10^5 rad |
| Crystal structure | Cubic | Cubic | Cubic | Cubic |
| Cleavage plane | No | No | No | No |
| Hygroscopicity | No | No | No | No |
| Mohs hardness | 8 | 8 | 8 | 8 |
| Afterglow | ≤0.10% @ 20 ms | ≤0.02% @ 20 ms | ≤0.10% @ 20 ms | ≤0.10% @ 20 ms |
GAGG(Ce) vs Related Scintillation Crystal Materials
This comparison helps position GAGG(Ce) against common scintillator choices. Exact detector performance depends on crystal size, wrapping, optical coupling, photosensor, electronics, and test conditions.
| Material | Density | Typical Decay | Main Advantage | Handling / Background |
|---|---|---|---|---|
| GAGG(Ce) | About 6.6 g/cm3 | Grade dependent, <50 to <150 ns | High light output, 520 nm emission, SiPM-friendly readout | Non-hygroscopic; no Lu-176 intrinsic background |

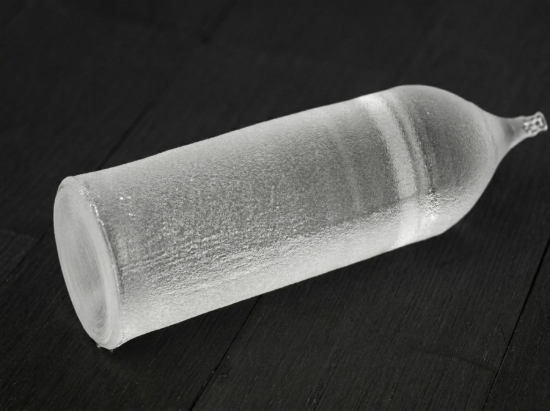

| LYSO(Ce) | About 7.1 g/cm3 | About 40 ns | Fast timing and PET/TOF-PET detector designs | Non-hygroscopic; contains Lu-176 intrinsic background |
| BGO | About 7.13 g/cm3 | About 300 ns | High stopping power and stable oxide crystal handling | Non-hygroscopic; low light output |
| NaI(Tl) | About 3.67 g/cm3 | About 250 ns | High light yield and mature gamma spectroscopy use | Highly hygroscopic; hermetic sealing required |
| CsI(Tl) | About 4.51 g/cm3 | About 1000 ns | High light output and photodiode-friendly green emission | Slightly hygroscopic |
| CdWO4 | About 7.9 g/cm3 | Very slow, about 14 us | Low afterglow X-ray and CT inspection applications | Non-hygroscopic |
| LaBr3(Ce) | About 5.1 g/cm3 | About 20 ns | Excellent energy resolution and fast scintillation | Hygroscopic; encapsulation required |
Applications
Applications of GAGG(Ce) Scintillation Crystal
Gamma-ray detection and compact detector modules
X-ray medical imaging and industrial inspection
PET/SPECT research and nuclear medicine instrumentation
Security inspection, radiation monitoring, and portal systems
High-energy physics and nuclear measurement experiments
SiPM-coupled scintillator arrays and detector prototypes
Ordering
GAGG Crystal Price and Custom Quotation
GAGG crystal price depends on the material grade, finished dimensions, surface treatment and quantity. A monolithic crystal, a thin scintillation screen and a pixelated array require different processing and quotation details.
To compare quotations for the same component, define these requirements:
- Grade and performance: high light output, low afterglow, fast decay or balanced type, together with the acceptance criteria.
- Geometry: finished dimensions and tolerances; for arrays, include pixel size, pitch and layout.
- Optical finish: polished faces, coupling face, coatings and reflector or wrapping requirements.
- Screen or array construction: specify any substrate, frame, reflector or bonding requirement.
- Quantity: state the number of pieces or arrays required.
For a custom GAGG(Ce) crystal quotation, send your drawing or dimensions, quantity and intended application. Include the target energy range and PMT, SiPM, photodiode or camera readout where known. The table below lists the information needed for engineering review.
| RFQ Item | Information to Provide |
|---|---|
| Product type | Monolithic crystal, scintillation screen, substrate-coupled screen, framed screen, or pixelated array. |
| Crystal dimensions | Length, width, thickness, diameter, pixel size, pitch, tolerance, and drawing if available. |
| GAGG(Ce) grade | High light output, low afterglow, fast decay time, balanced type, or application-based recommendation. |
| Surface and coating | Polishing, roughening, reflection coating, AR coating, diffusion painting, conductive coating, or markings. |
| Readout method | PMT, SiPM, photodiode, CCD/CMOS camera, fiber coupling, or other optical readout. |
| Acceptance criteria | Visual inspection, dimensional tolerance, light output, afterglow, uniformity, energy resolution, or other test requirement. |
For an initial material evaluation, specify the sample geometry and test requirements. For imaging modules or position-sensitive readout, review our GAGG(Ce) array page.
Still choosing between GAGG(Ce) and LYSO(Ce)? Read the GAGG vs LYSO scintillator selection guide before finalizing the material.
Request a GAGG(Ce) quotation using the online inquiry form, or email your specifications and drawing to sales@atrscintillator.com. Final specifications and acceptance criteria are confirmed for the quoted configuration.
Frequently Asked Questions
What is GAGG(Ce) scintillation crystal used for?
Is GAGG(Ce) hygroscopic?
Does GAGG(Ce) have intrinsic background?
Which GAGG(Ce) grade should I choose?
Confirm light yield, decay time and afterglow together for the selected grade. The highest light yield and fastest decay values in different grade rows should not be combined into one specification without confirmation.
Can GAGG(Ce) be made into a pixelated array?
What should accompany a quoted GAGG energy-resolution value?
Ask for the crystal dimensions, radiation energy, photosensor, optical coupling and measurement conditions associated with the value. Keep the reference value on the material page separate from the acceptance limit for your component. A quotation should identify the agreed configuration and test basis before an energy-resolution requirement is treated as a delivery criterion.
